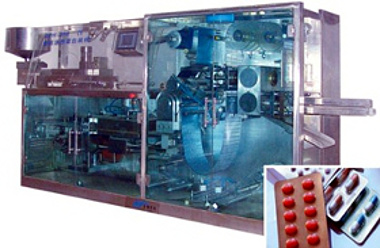

Blister Machine model DPH-250
- Number of strokes（Strokes/min）: 60-160
- Productivity（blisters/hour）: 28 800
- Energy consumption: 9 kW 380 V/220 V 50 Hz
- Power of the main engine (kW): 1,5
- Packaging materials（mm）: PVC 250×0.25 PTP 250×0.02
- Max packaging diameter （mm）: PTP Ф280 mm PVC Ф400 mm
- Max formation area（mm）: 240х240х12
- Area of coverage（mm）: 100 - 250
- Area of cutting（mm）: 20 -100
- Water usage (l/min): 3,2
- Gas usage (l/min): 300
- Overall size（L х W х H mm): 2600 х 850 х 1780
- Weight（kg）: 2000
|
 |

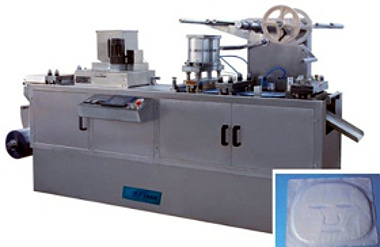

Blister Machine model DPB-320
- Number of strokes (Strokes/min): 6-50
- Productivity (10 000 blisters/hour) : 4 - 29
- Maximum size of formation and depth (mm): 310 х 150 х 26 (Standard 310 х 150 х 14)
- Area of coverage (mm): 40 - 140 (up to 200мм)
- Air pressure (MPaG): 0,4 - 0,6≥0.3 m³/min
- Standard cut (mm): 80 х 57
- Electric power supply: 380В/220В 50 Hz 6.2 kW
- Main engine capability (kW): 1,5
- PVC hard plate (mm): 0,15 - 0,5 х 320
- PTP Aluminum foil (mm): 0,02 - 0,035 х 320
- Dialyzed paper (mm): 50 100г х 320
- Form cooling: City water or circulatory water
- Size (L х W х H mm): 2600 х 850 х 1780
- Weight (kg): 2000
|
 |
|
|
|
|
|
|
